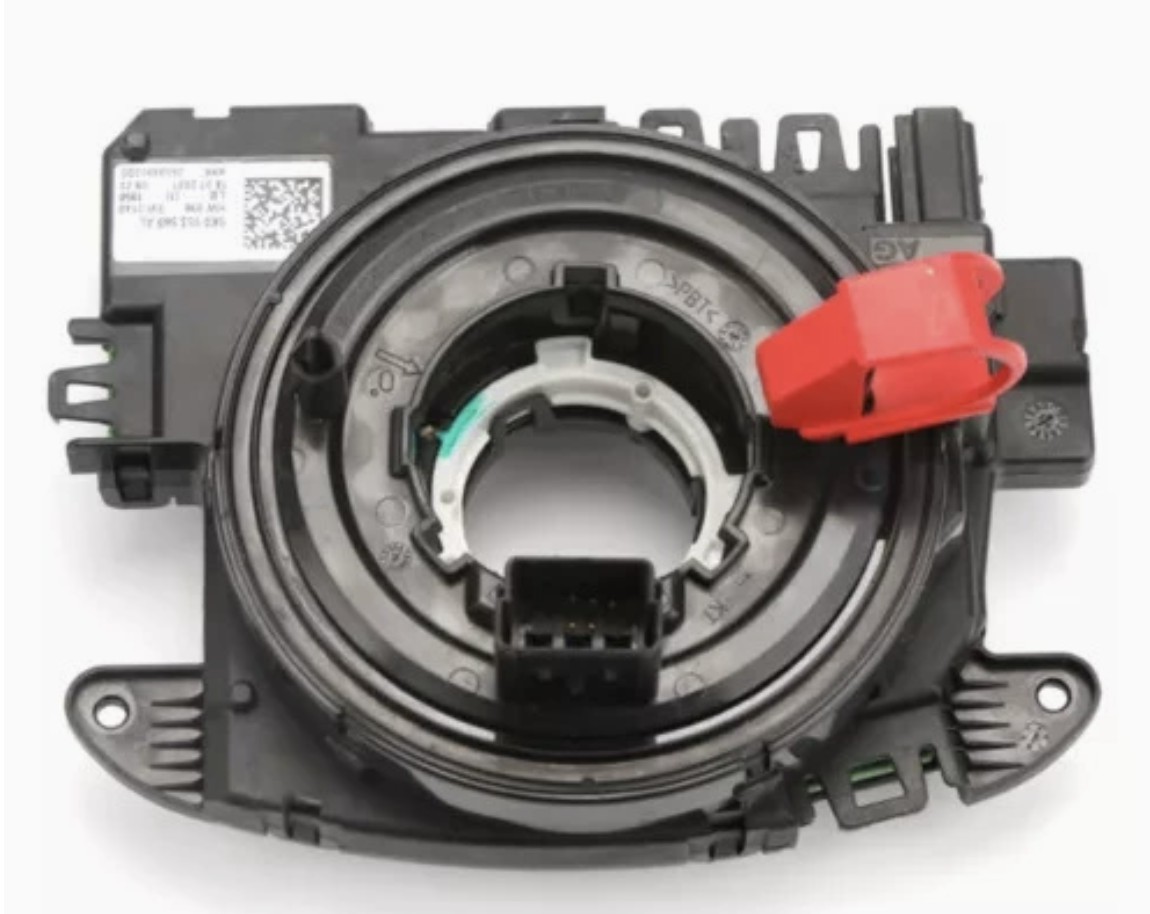

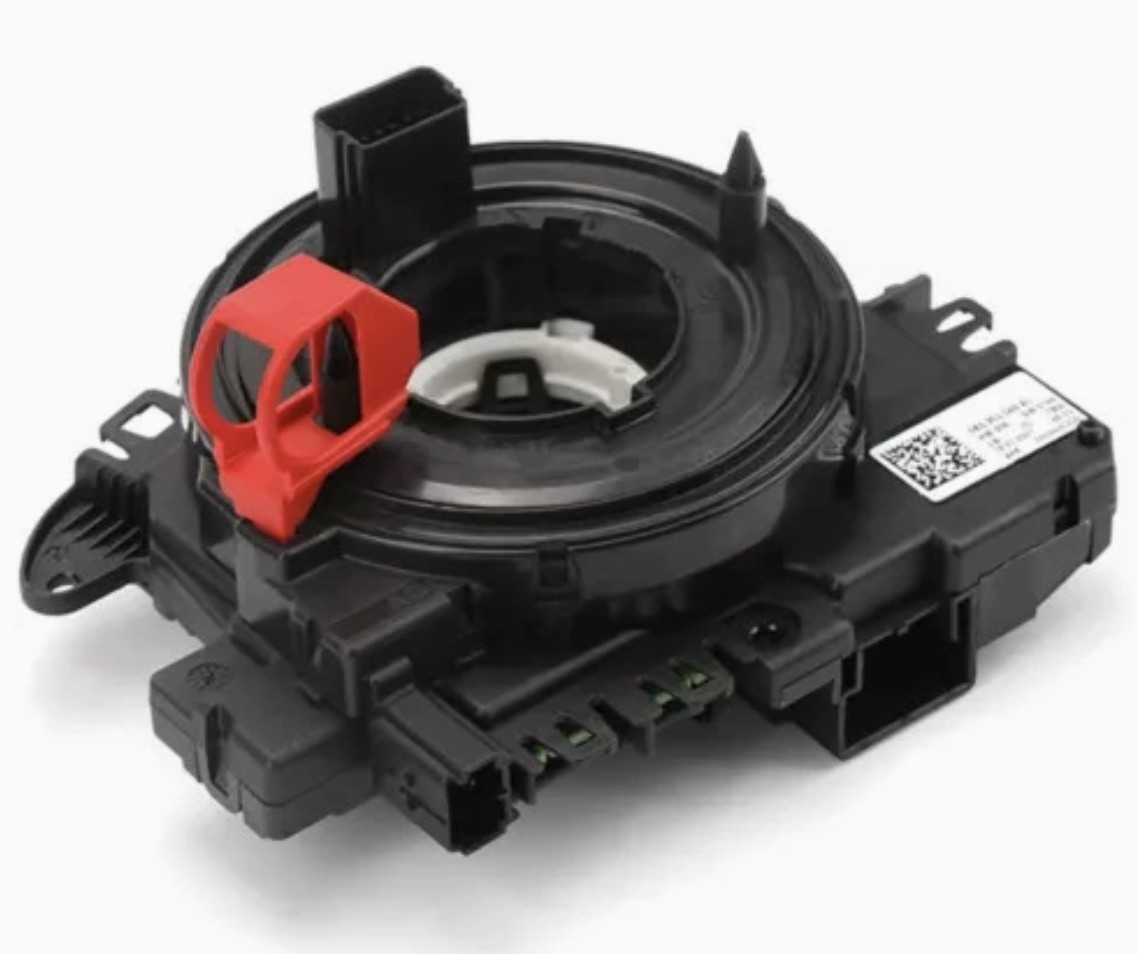

5K0953569AL 5K0953569H

5K0953569AL 5K0953569H Factory Steering Angle Sensor High Quality Fit for VW Audi
MOQ : 1 PCS. PRICE : 100-110$

Product Overview
The Steering Angle Sensor is a critical component in the Electronic Stability Program (ESP) and Electronic Power Steering (EPS) systems of Volkswagen and Audi vehicles. It continuously monitors the steering wheel position, rotation angle, and rate of turn, providing real-time data to the vehicle's stability control systems. This information enables precise

Select the number of specifications

Please check the product information you want!

Product Detail

Steering Angle Sensor for VW/Audi

Part Numbers: 5K0953569AL, 5K0953569H

Quality: Factory/OEM Level

Key Features

High-Precision Measurement
- Utilizes optical or magnetic sensing technology for accurate angle detection (typically 0.1° resolution).
- Monitors steering wheel position, rotation speed, and direction simultaneously.
Factory-Level Quality
- Manufactured to meet or exceed original equipment specifications.
- Direct replacement with identical electrical and mechanical interfaces.
Durable Construction
- Sealed design to protect against moisture, dust, and temperature extremes.
- Built to withstand steering column vibration and mechanical stress.
Plug-and-Play Compatibility
- Equipped with OEM-standard connectors for seamless installation.
- Requires calibration/adaptation using diagnostic tools after replacement.

Technical Specifications

Parameter	Specification
Part Numbers	5K0953569AL, 5K0953569H
Measurement Range	Typically ±720° (multi-turn capable)
Resolution	0.1° to 0.5° (model-dependent)
Output Signal	CAN bus or analog (model-specific)
Operating Voltage	5V or 12V DC
Mounting Location	Integrated with clock spring/steering column

Symptoms of Failure

✅ Warning Lights: ESP/ESC, ABS, or steering system warning lights illuminated
✅ Fault Codes: DTCs related to steering angle sensor (e.g., VAG codes 00778, 01486)
✅ System Malfunctions: Loss of ESP/ESC functionality, erratic power steering assistance
✅ Stability Issues: Unexpected ABS activation during normal driving
✅ Cruise Control: Inoperative or disengaging unexpectedly

Installation & Calibration

Pre-Installation:
- Disconnect vehicle battery to prevent electrical damage.
- Ensure steering wheel is centered and wheels are straight.
Installation:
- Replace sensor following manufacturer's torque specifications.
- Ensure proper alignment with steering column components.
Calibration (Mandatory):
- Use VCDS, ODIS, or VAS diagnostic tools for VW/Audi systems.
- Perform steering angle sensor basic settings and adaptation.
- Clear fault codes and verify system functionality with a test drive.

Vehicle Compatibility

Compatible with various VW and Audi models equipped with ESP/ESC systems, including:

Volkswagen: Golf, Passat, Jetta, Tiguan, Touran
Audi: A3, A4, A6, Q3, Q5
Always verify compatibility using the specific part number and vehicle VIN.

Why This Sensor Matters

Safety Critical: Essential for ESP/ESC system operation and accident prevention.
System Integration: Interacts with ABS, traction control, and power steering systems.
OEM Performance: Ensures accurate data transmission and system reliability.
Factory Quality: Reduces the risk of premature failure and system malfunctions.
