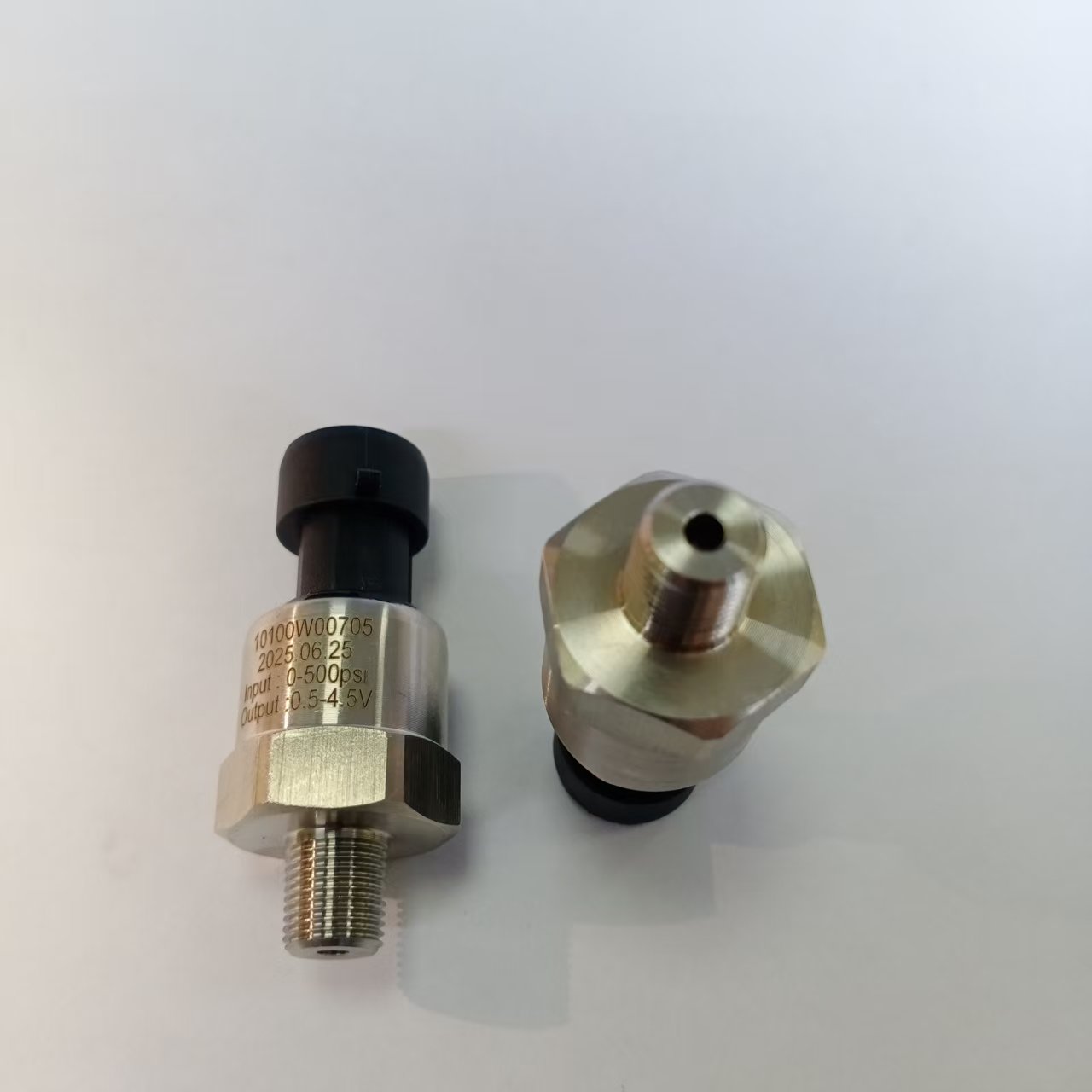

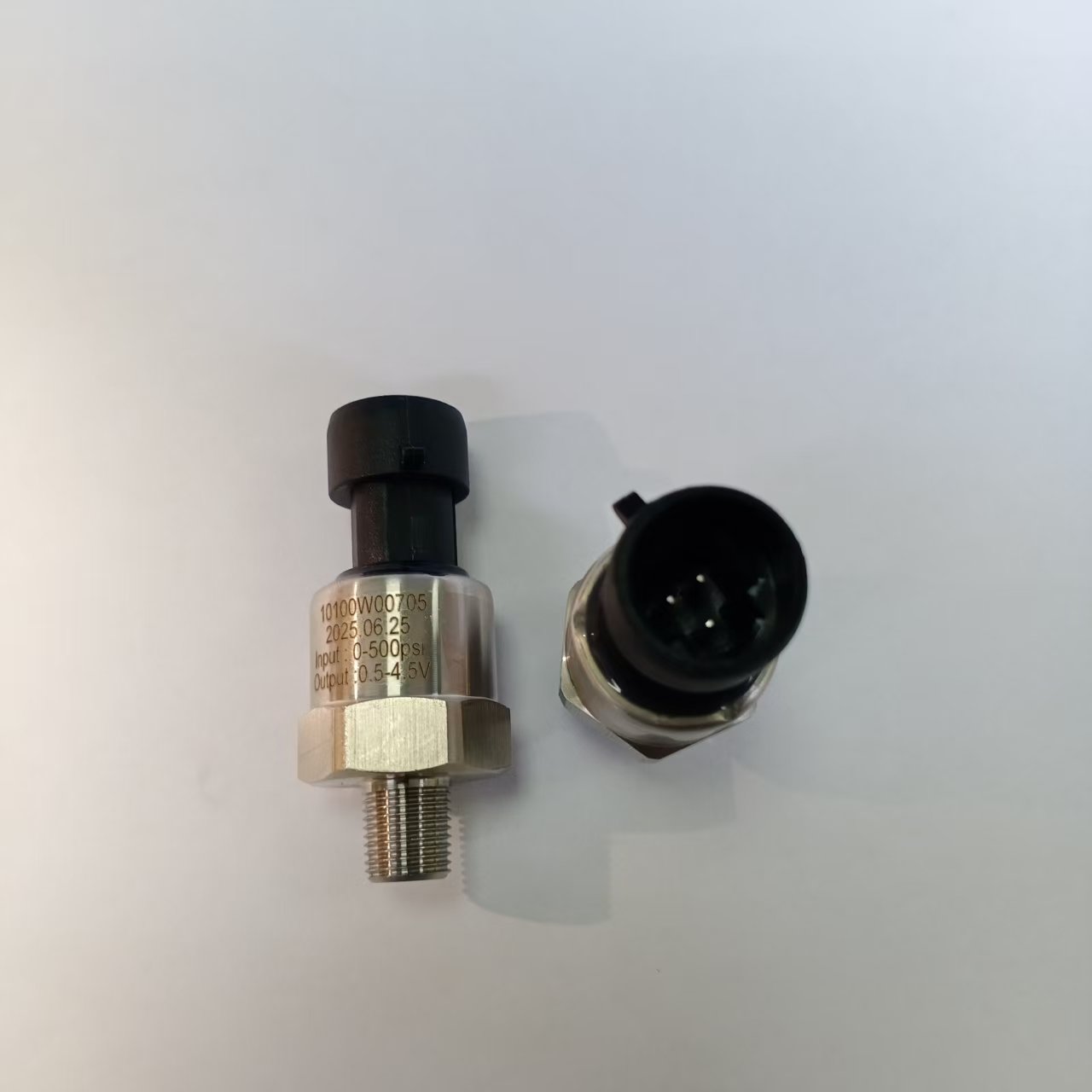

500PSI Pressure sensor

Name: 500PSI Pressure sensor
Rating: 4.6 (98 reviews)

500 PSI Pressure Sensor 0.5V to 4.5V Stainless steel 1/8" NPT with connector pressure transmitter transducer sensor
MOQ: 10 PCS. PRICE : 7-10$

Select the number of specifications

Please check the product information you want!

Product Detail

Technical Parameters:

1,Nominal Pressure: 0 - 500 PSI (2.0658 MPa). The maximum overload is 4 MPa (lasting for 1 minute), and the burst pressure is not less than 5 MPa.

2,Output Voltage: 0.5 - 4.5 V.

3,Operating Voltage: 5 ± 0.5 V.

4,Maximum Input Current: 3 mA.

5,Input - Output Characteristic: V=1.9363P+0.5, where Pis the input pressure in MPa and Vis the output voltage. Refer to the input - output characteristic table.

6,Operating Temperature: 0 - 50 °C.

7, Operating Accuracy: The output error is ± 0.0125 V (± 0.25 % FS) within the temperature range of 0 - 50 °C.

8,Long - term Stability: ≤ ± 1.6 % FS per year.

9,Insulation Performance: 100 MΩ at 500 VDC.

10,Response Time: 3 ms (maximum).

11,Service Life: Not less than 1×10 pressure - temperature cycles.

12,Housing: Made of stainless - steel casing.

13,Protection Rating: Overall IP65 (including the connector).

14,Applicable Medium: Water and oil.

15,One - meter wire harness (as shown in the figure on the right): One piece.

16,Laser Marking on the Housing: The hexagonal marking indicates 0 - 500 PSI
