Product
Product Detail

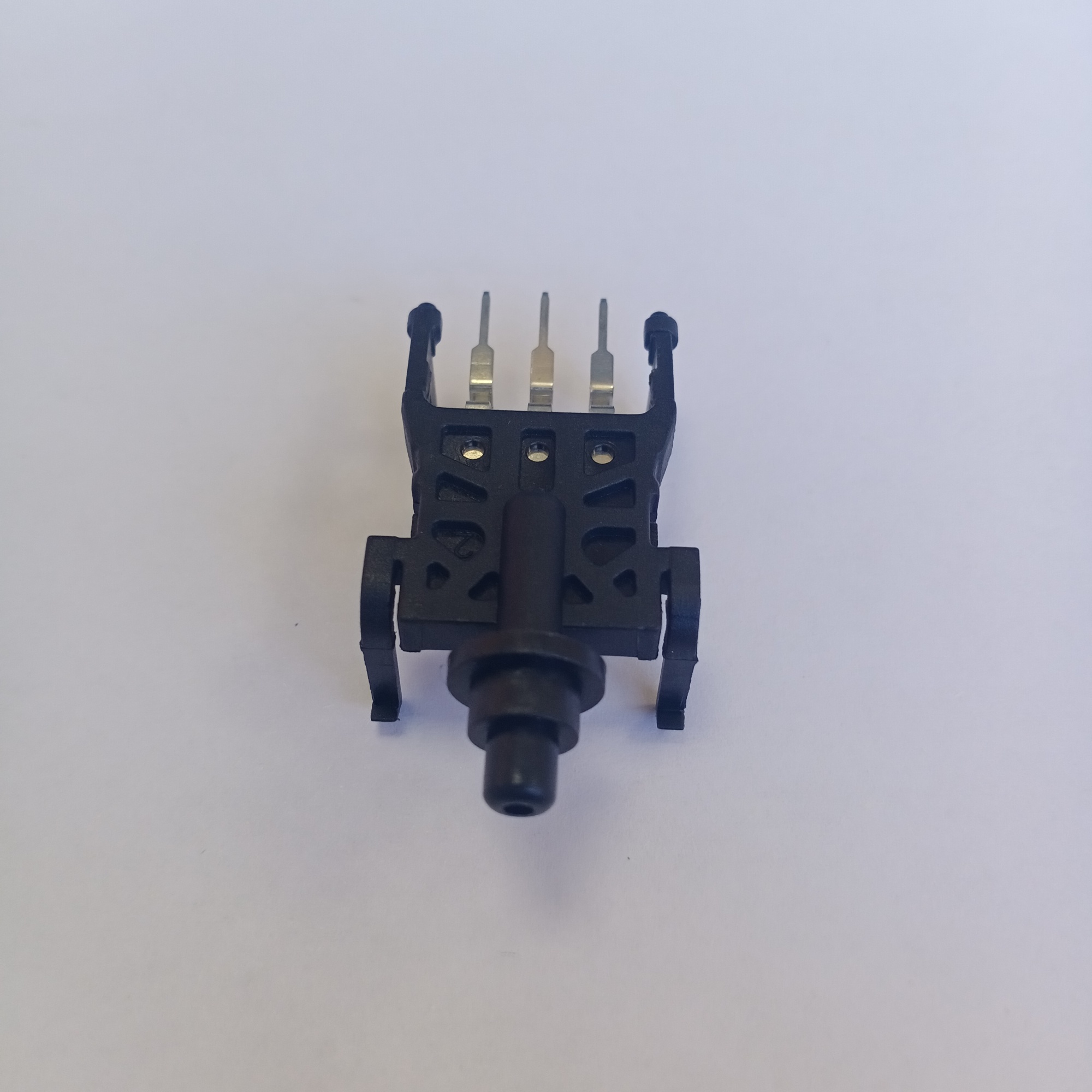

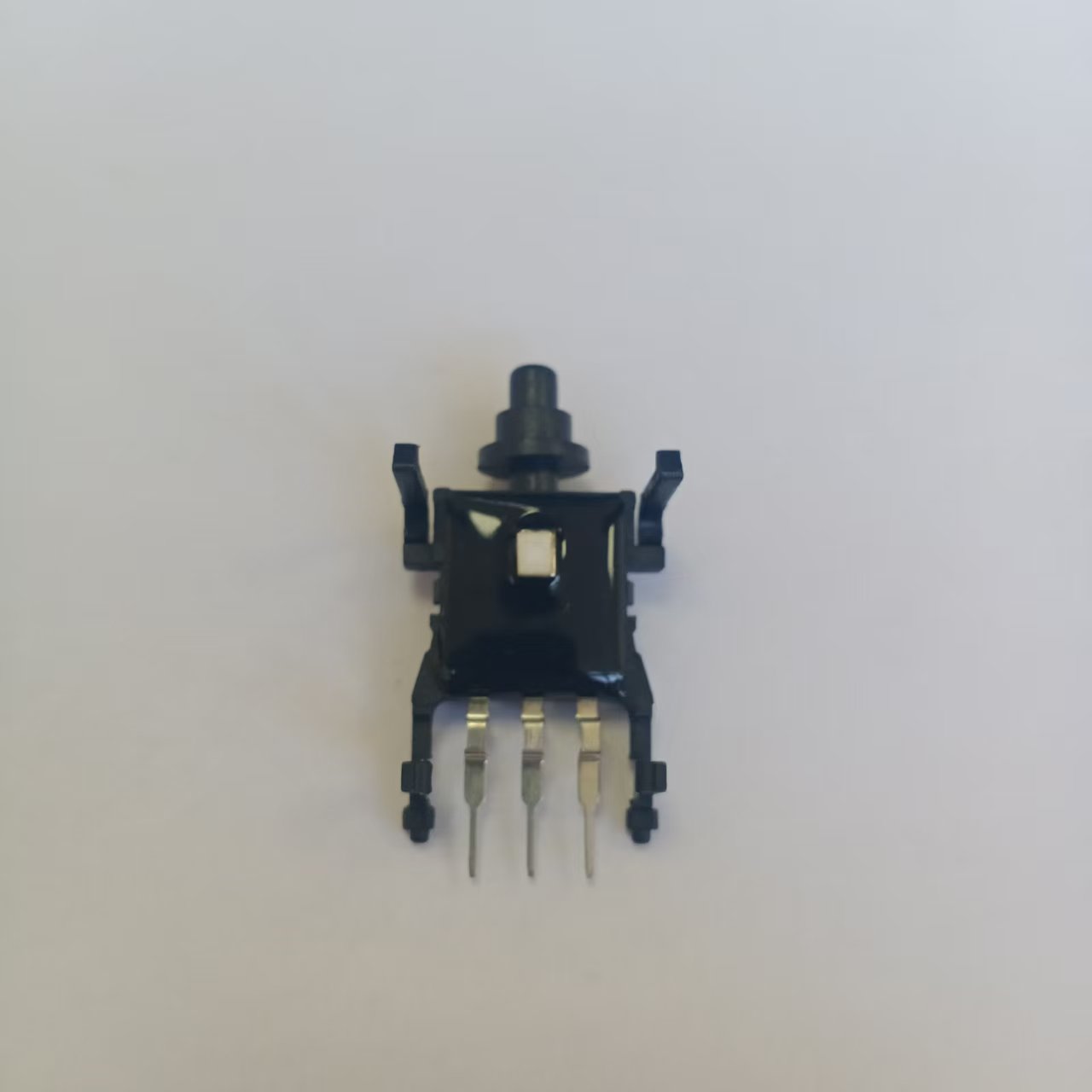

Preassure sensor 10100517105

Name: Preassure sensor 10100517105
Rating: 4.5 (83 reviews)

Preassure sensor 10100517105 0-1.3Mpa 0.5-4.5V

Select the number of specifications

Please check the product information you want!

Product Detail

Technical Requirements for 85℃

Nominal Pressure: 0–1.3 MPa, Maximum Overload: 1.6 MPa
Output Type: 0.5–4.5 V
Operating Voltage: 5 ± 0.25 V
Operating Temperature: –40℃ to 85℃
The potting surface shall be flat and smooth; the waterproof breathable membrane shall be firmly adhered, and the vent hole must not be blocked by adhesive or foreign matter.
Input-Output Characteristic: Vout = 3.0769P + 0.5
Output Accuracy: Within –40℃ to 85℃, output error shall be ±0.05 V (±1% FS)
Lifetime: Under –40℃ to 85℃ and pressure of 0–13 bar, 2 million cycles (refer to the temperature cycling curve), with durability meeting all performance specifications
Unless otherwise specified, dimensional tolerances shall comply with GB/T 14486 MT7 grade

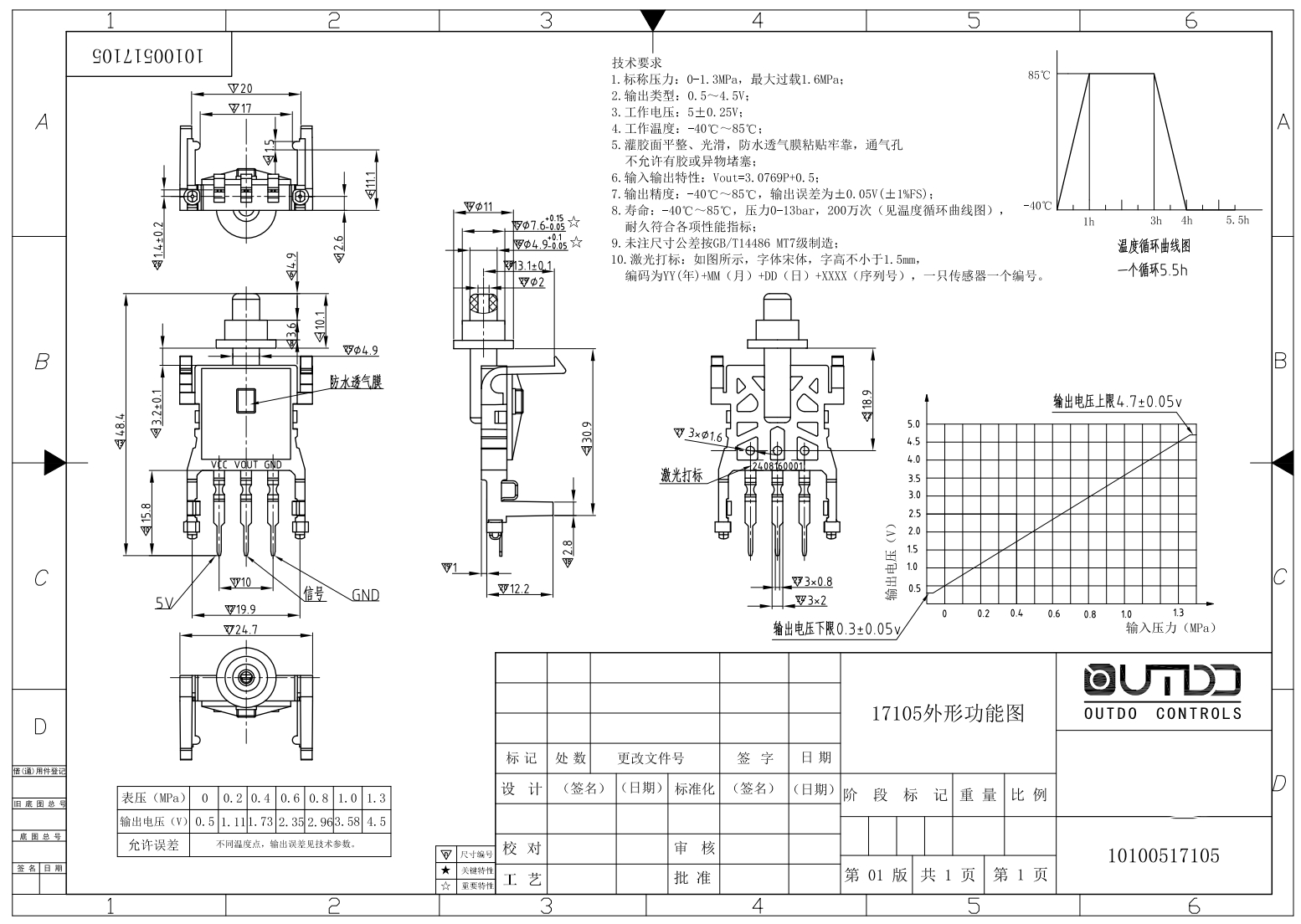

Laser Marking: As shown in the drawing, using Song typeface, character height not less than 1.5 mm. The code format shall be YY (year) + MM (month) + DD (day) + XXXX (serial number), with each sensor having a unique number.

No comment

Previous : Temperature pressure sensor 10100515713 Next : Pressure sensor with Cable 10100515303

Product Detail

Technical Requirements for 85℃

Nominal Pressure: 0–1.3 MPa, Maximum Overload: 1.6 MPa
Output Type: 0.5–4.5 V
Operating Voltage: 5 ± 0.25 V
Operating Temperature: –40℃ to 85℃
The potting surface shall be flat and smooth; the waterproof breathable membrane shall be firmly adhered, and the vent hole must not be blocked by adhesive or foreign matter.
Input-Output Characteristic: Vout = 3.0769P + 0.5
Output Accuracy: Within –40℃ to 85℃, output error shall be ±0.05 V (±1% FS)
Lifetime: Under –40℃ to 85℃ and pressure of 0–13 bar, 2 million cycles (refer to the temperature cycling curve), with durability meeting all performance specifications
Unless otherwise specified, dimensional tolerances shall comply with GB/T 14486 MT7 grade
Laser Marking: As shown in the drawing, using Song typeface, character height not less than 1.5 mm. The code format shall be YY (year) + MM (month) + DD (day) + XXXX (serial number), with each sensor having a unique number.
