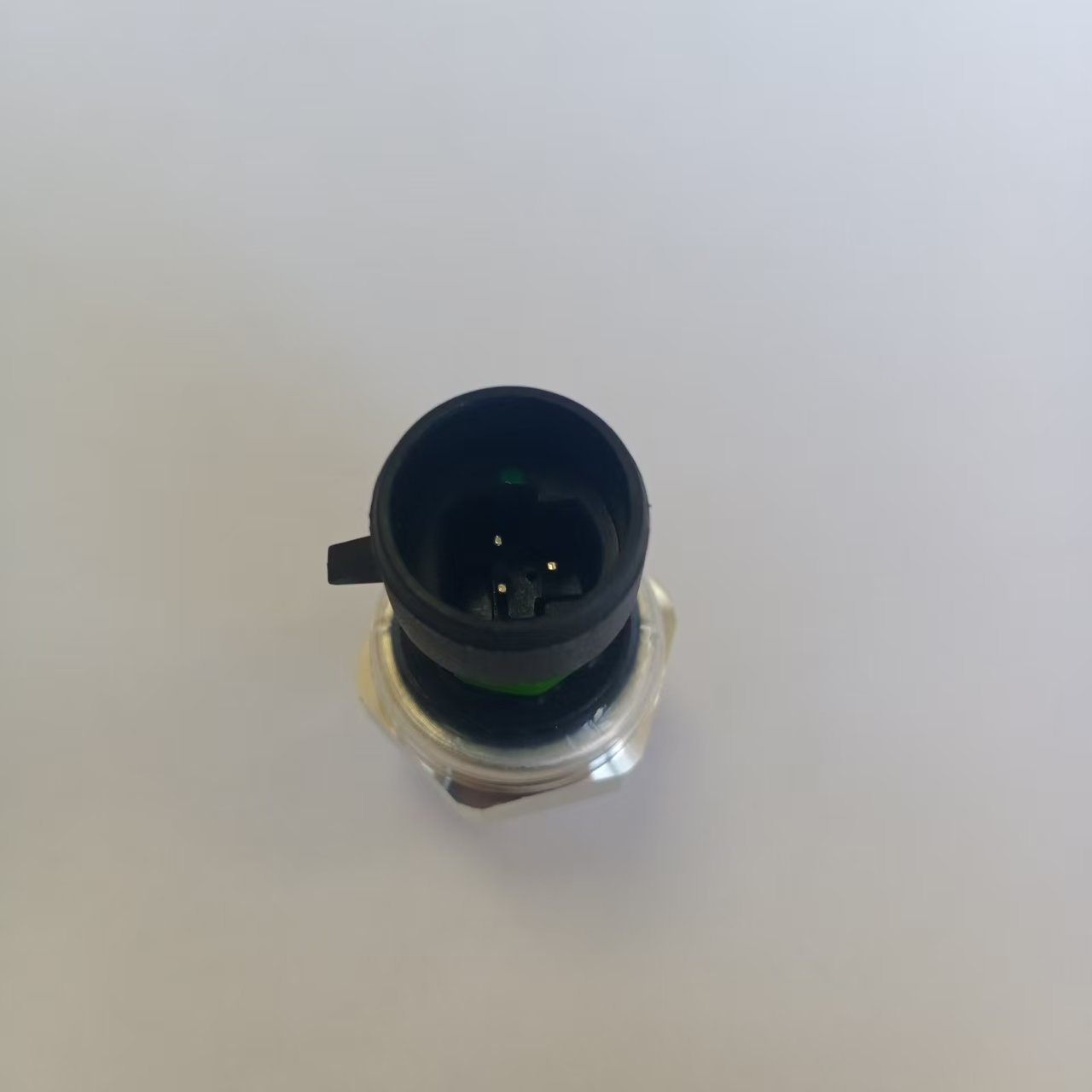

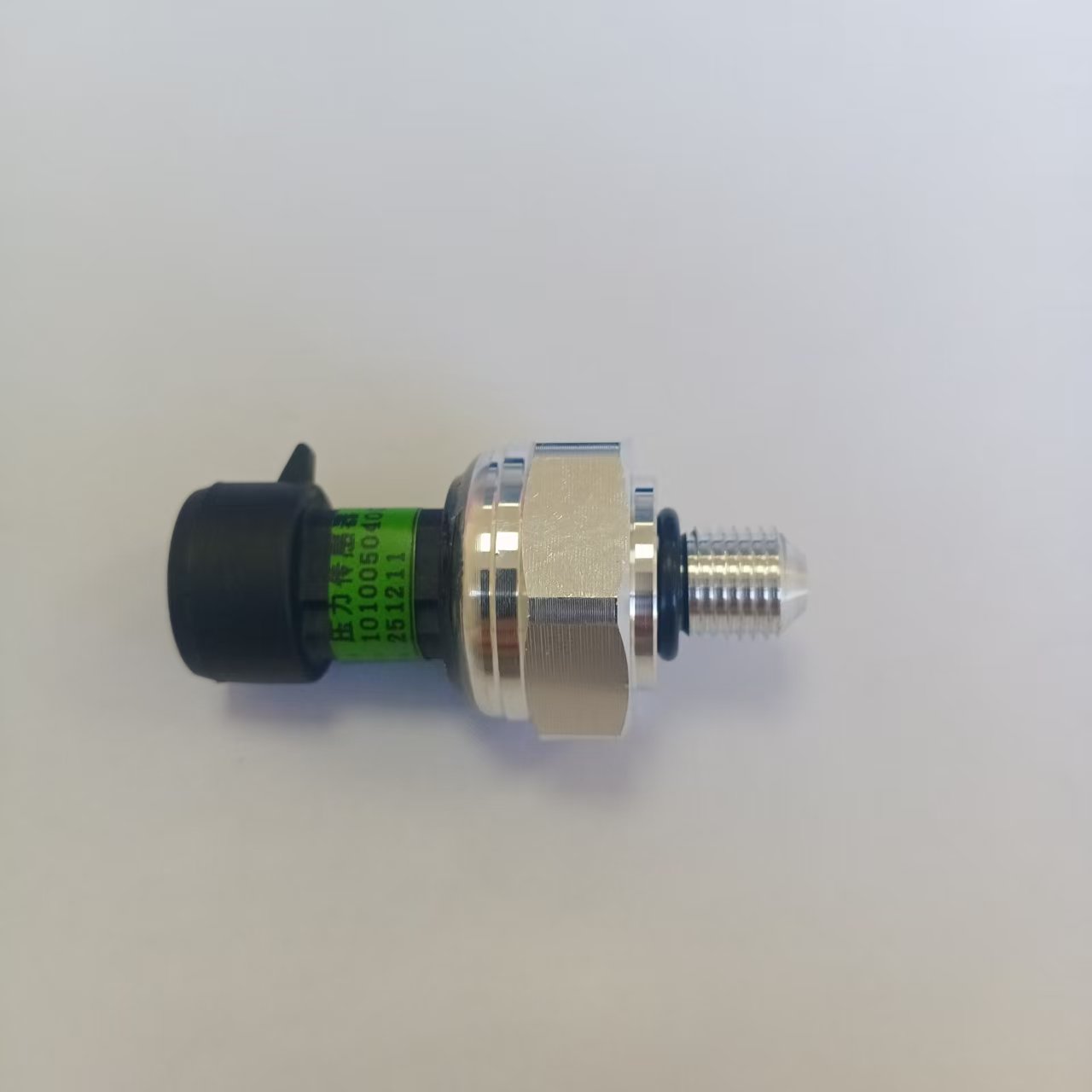

APU pressure sensor 10100504002
APU pressure sensor 10100504002
APU pressure sensor 10100504002
APU pressure sensor 10100504002

APU pressure sensor 10100504002

APU pressure sensor 10100504002 0~1.0MPa，5V transducer

APU pressure sensor 10100504002

Select the number of specifications

Please check the product information you want!

Product Detail

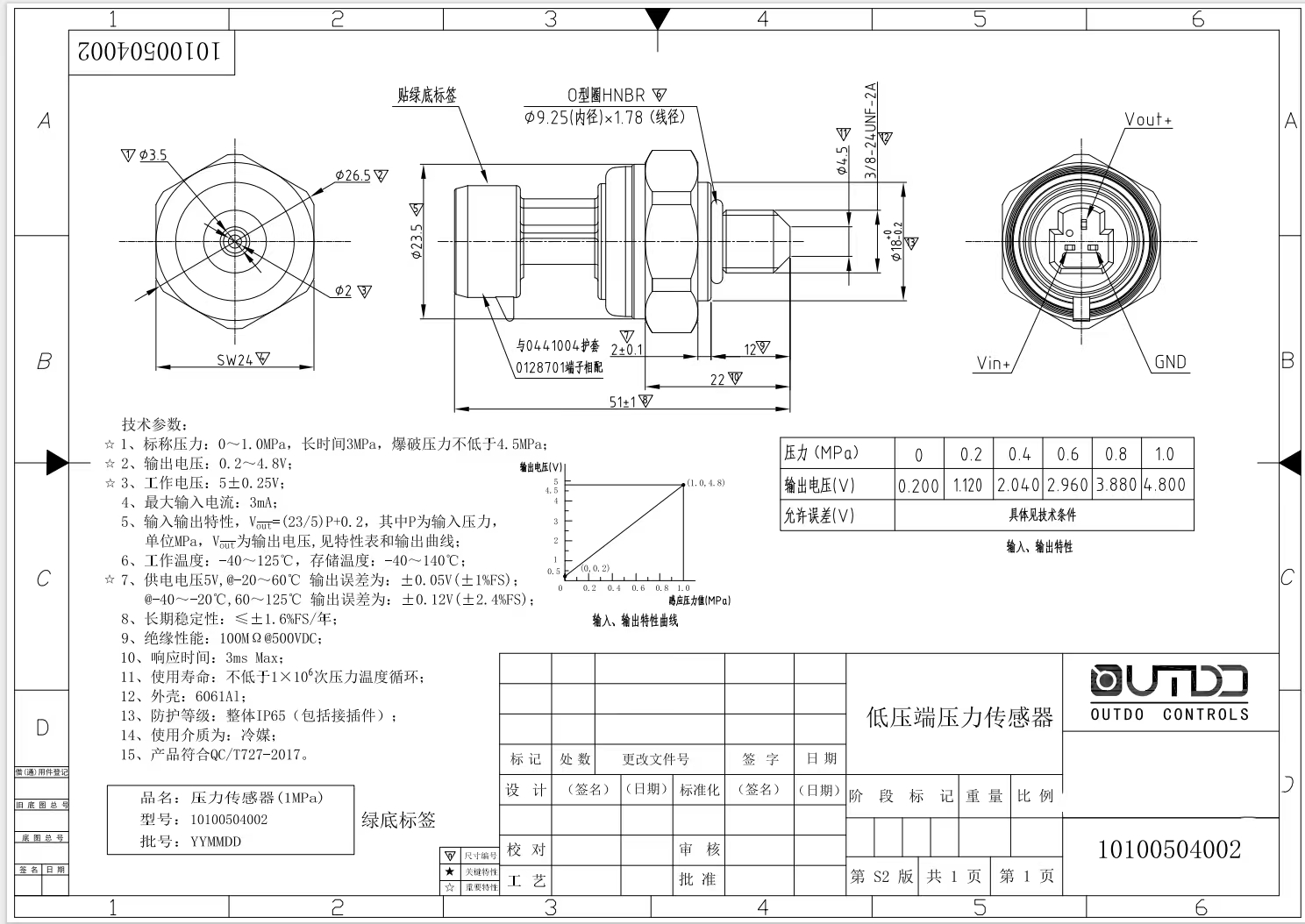

Technical Specifications:
☆1. Nominal Pressure: 0–1.0 MPa; Continuous Operating Pressure: 3 MPa; Burst Pressure: Not less than 4.5 MPa.
☆2. Output Voltage: 0.2–4.8 V.
☆3. Operating Voltage: 5 ± 0.25 V.
4. Maximum Input Current: 3 mA.
5. Input-Output Characteristic: V = (23/5)P + 0.2, where P is the input pressure in MPa, and V is the output voltage (refer to the characteristic table and output curve).
6. Operating Temperature: –40°C to 125°C; Storage Temperature: –40°C to 140°C.
☆7. Output Error at 5 V Supply:

  • –20°C to 60°C: ±0.05 V (±1% FS)
  • –40°C to –20°C and 60°C to 125°C: ±0.12 V (±2.4% FS).
  1. Long-Term Stability: ≤ ±1.6% FS/year.
  2. Insulation Performance: ≥ 100 MΩ @ 500 VDC.
  3. Response Time: ≤ 3 ms Max.
  4. Service Life: Not less than 1 × 10⁶ pressure-temperature cycles.
  5. Housing Material: 6061 Aluminum.
  6. Protection Rating: Overall IP65 (including connector).




  11. Compatible Media: Refrigerant.
  12. Product Compliance: Meets QC/T727-2017 standard.
