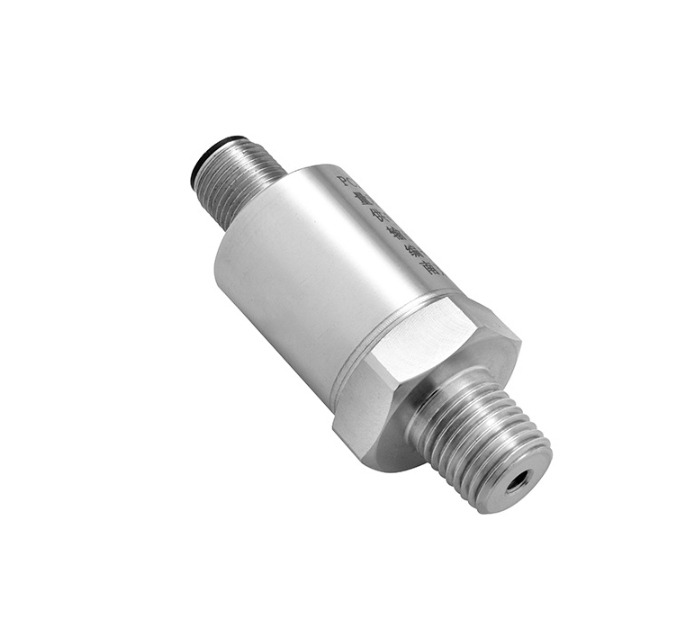

Pressure Transmitter for compressors OTD320
Pressure Transmitter for compressors OTD320

Pressure Transmitter for compressors OTD320

Air and Oil Pressure sensor transmitter for compressors 4-20mA hydraulic OTD320

Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Measuring Range: -100 kPa… 0~10 kPa… 60 MPa

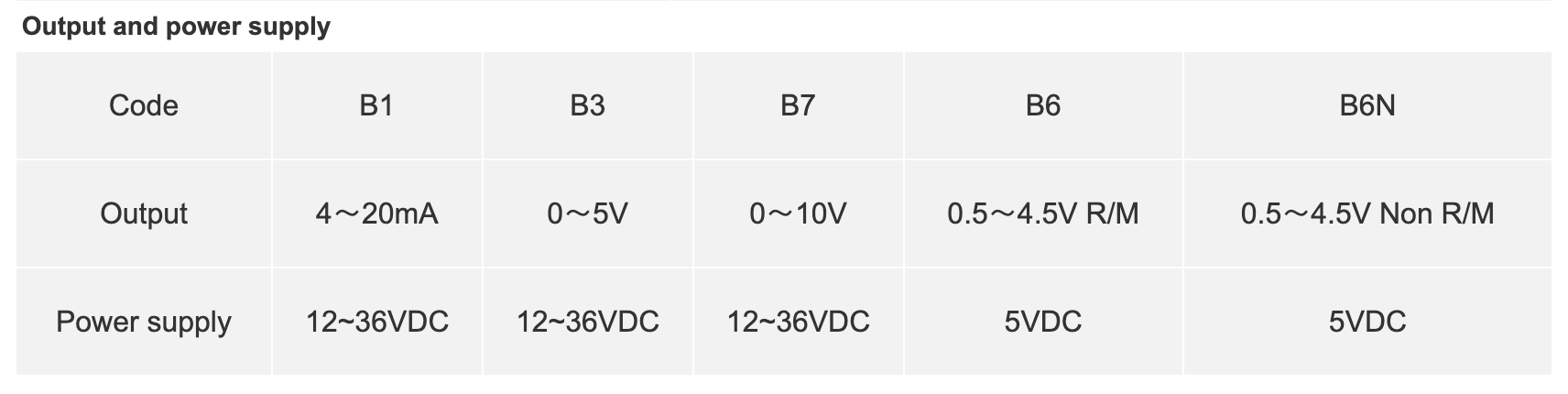

Power Supply & Output: 4~20 mA, 0~5 V, 0~10 V (12~30 VDC);
0.5–4.5 V R/M (5 VDC)
Accuracy: 0.5% F.S. (Typical)
Operating Temperature: -40℃ ~ 125℃
Temperature Drift: 1.5% F.S. (-20℃ ~ 85℃)
Housing Material: Stainless Steel 304
Sensing Element Material: Stainless Steel 316L
Protection Rating: IP65

Pressure Transmitter for compressors OTD320

Select the number of specifications

Please check the product information you want!

Product Detail


No comment

Previous : Oil Pressure Sensor 4921487 3083716 Next : Presssure Transmitter OTD390
Product Detail


Pressure Transmitter for compressors OTD320
Air and Oil Pressure sensor transmitter for compressors 4-20mA hydraulic OTD320

Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Measuring Range: -100 kPa… 0~10 kPa… 60 MPa
Power Supply & Output: 4~20 mA, 0~5 V, 0~10 V (12~30 VDC);
0.5–4.5 V R/M (5 VDC)
Accuracy: 0.5% F.S. (Typical)
Operating Temperature: -40℃ ~ 125℃
Temperature Drift: 1.5% F.S. (-20℃ ~ 85℃)
Housing Material: Stainless Steel 304
Sensing Element Material: Stainless Steel 316L
Protection Rating: IP65
