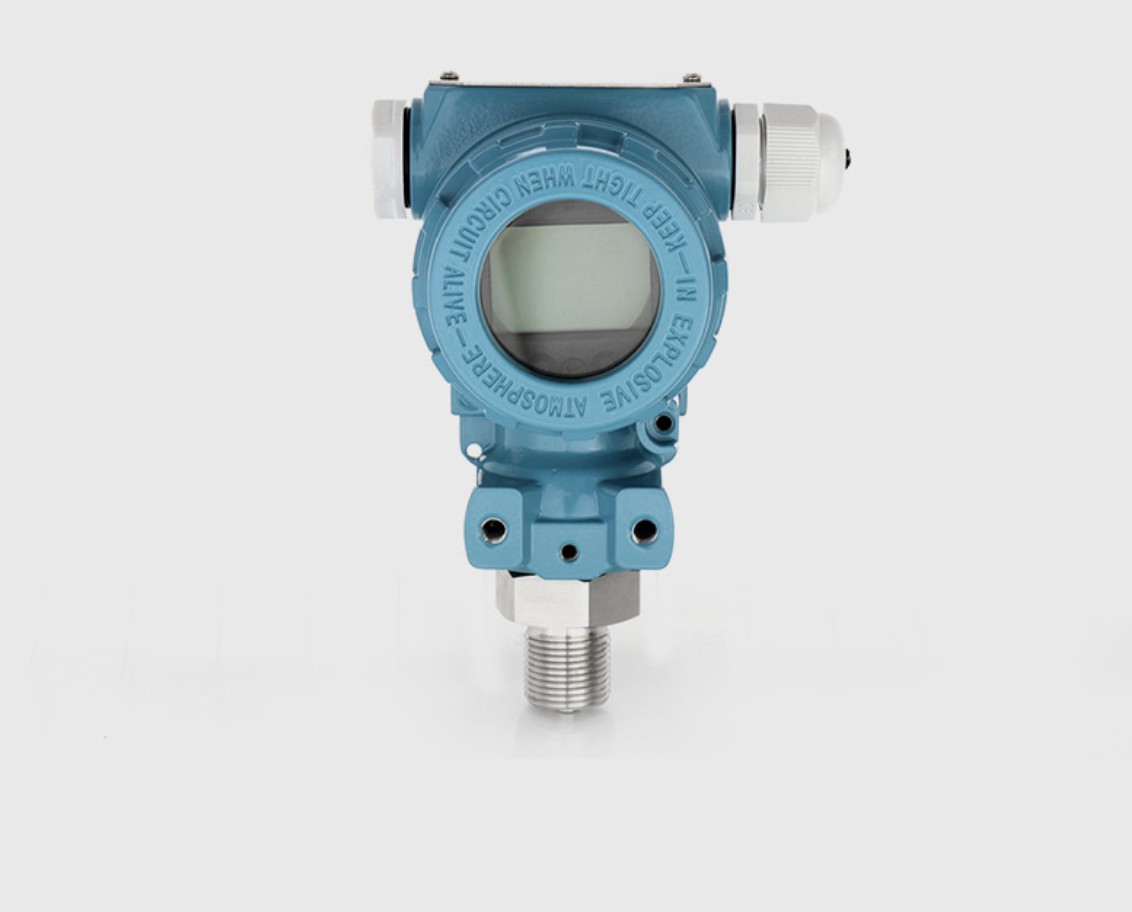

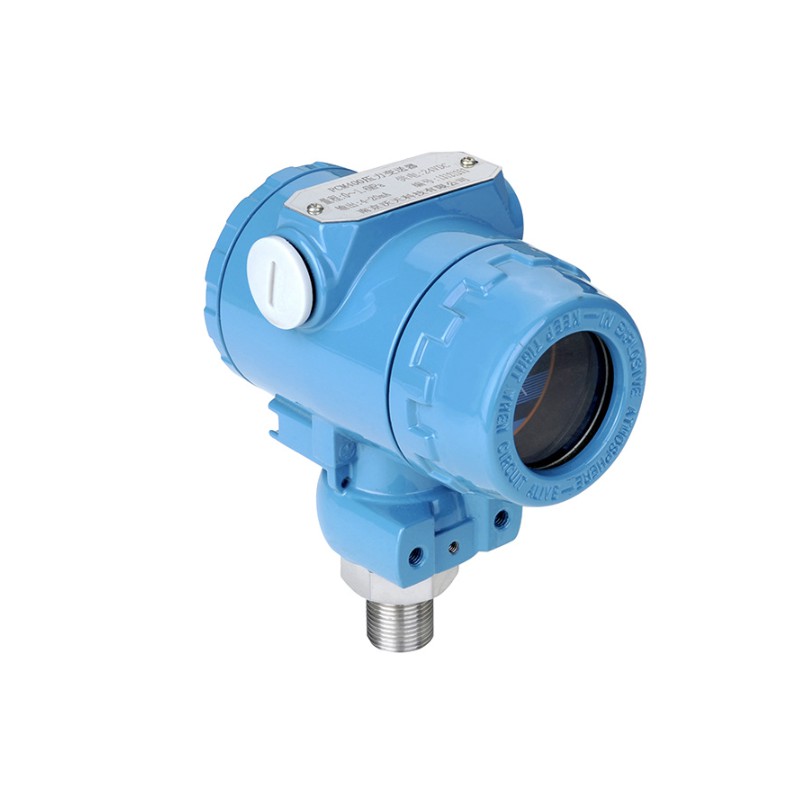

Absolute Pressure Transmitter with Display OTD460
Absolute Pressure Transmitter with Display OTD460
Absolute Pressure Transmitter with Display OTD460
Absolute Pressure Transmitter with Display OTD460

Absolute Pressure Transmitter with Display OTD460

Pressure Transmitter with Display OTD460
Pressure Type: Gauge, Absolute, Sealed Gauge
Range: -100kPa…0~20kPa…100MPa
Power Supply & Output:
4~20mA + HART (Without display, 18~36V)
4~20mA + HART / RS485 (With display, 12~36V)
Accuracy: ±0.5% FS (@ 25℃)
Temperature Drift:

For range > 35kPa: ±1.5% FS (@ -10℃ ~ 70℃)

For range ≤ 35kPa: ±3% FS (@ 0℃ ~ 60℃)
Operating Temperature: -20℃ ~ 85℃
Compensation Temperature: -10℃ ~ 70℃
Material:
Housing: Aluminum alloy
Isolating diaphragm: 3

Absolute Pressure Transmitter with Display OTD460

Select the number of specifications

Please check the product information you want!

Product Detail

Overview

OTD460 pressure transmitter adopts high performance, high stability OEM pressure die as a signal measurement element, by special signal processing, convert the sensor signal into a standard signal output, after long-term aging and stability screening,make sure the product performance is stable and reliable, used in the harsh environment of open air field, meanwhile display the field pressure,and migrate zero point, full range etc.


Characteristics

■ Adopting high-performance diffused silicon piezoresistive sensors

■ For gas, liquid and other media pressure measurement

■ Wide pressure ranges

■ Selectable digital displays

■ Multiple output signals



Applications

■Industrial site control

■Oil field

■Heavy industry

■Chemical

■Gas pipeline network

■Water supply pipeline network



No comment

Previous : Differential Pressure Transmitter OTD610 Next : Adjustable High Pressure Switches
Product Detail

Overview

OTD460 pressure transmitter adopts high performance, high stability OEM pressure die as a signal measurement element, by special signal processing, convert the sensor signal into a standard signal output, after long-term aging and stability screening,make sure the product performance is stable and reliable, used in the harsh environment of open air field, meanwhile display the field pressure,and migrate zero point, full range etc.


Characteristics

■ Adopting high-performance diffused silicon piezoresistive sensors

■ For gas, liquid and other media pressure measurement

■ Wide pressure ranges

■ Selectable digital displays

■ Multiple output signals



Applications

■Industrial site control

■Oil field

■Heavy industry

■Chemical

■Gas pipeline network

■Water supply pipeline network



Absolute Pressure Transmitter with Display OTD460
Pressure Transmitter with Display OTD460
Pressure Type: Gauge, Absolute, Sealed Gauge
Range: -100kPa…0~20kPa…100MPa
Power Supply & Output:
4~20mA + HART (Without display, 18~36V)
4~20mA + HART / RS485 (With display, 12~36V)
Accuracy: ±0.5% FS (@ 25℃)
Temperature Drift:

For range > 35kPa: ±1.5% FS (@ -10℃ ~ 70℃)

For range ≤ 35kPa: ±3% FS (@ 0℃ ~ 60℃)
Operating Temperature: -20℃ ~ 85℃
Compensation Temperature: -10℃ ~ 70℃
Material:
Housing: Aluminum alloy
Isolating diaphragm: 3
