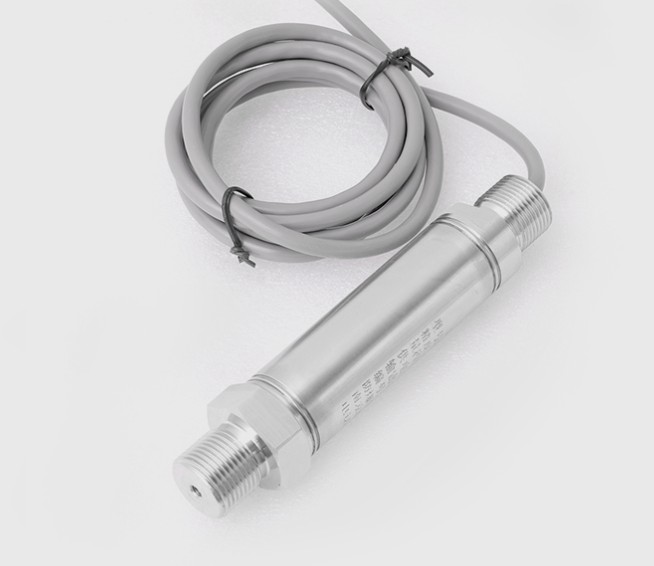

Isolation Explosion-proof Pressure Sensor OTD301
Isolation Explosion-proof Pressure Sensor OTD301
Isolation Explosion-proof Pressure Sensor OTD301

Isolation Explosion-proof Pressure Sensor OTD301

Isolation Explosion-proof Pressure Sensor OTD301
Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Measuring Range: -100 kPa…0~35 kPa…60 MPa
Power Supply & Output: 4~20 mA (12~30 VDC)
1~5 V, 0~5 V (12~30 VDC)
Accuracy: ±0.5% F.S. (typ.)
Temperature Drift: ±1.5% F.S. (-10℃ ~ 70℃)
Operating Temperature: -40℃ ~ 125℃
Housing Material: Stainless Steel 304
Sensing Element Material: Stainless Steel 316L
Electrical Connection: Direct Lead Wires
Protection Rating: IP65
Explosi

Isolation Explosion-proof Pressure Sensor OTD301

Select the number of specifications

Please check the product information you want!

Product Detail


No comment

Previous : Presssure Transmitter OTD390 Next : Pressure Transmitter OTD308
Product Detail


Isolation Explosion-proof Pressure Sensor OTD301
Isolation Explosion-proof Pressure Sensor OTD301
Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Measuring Range: -100 kPa…0~35 kPa…60 MPa
Power Supply & Output: 4~20 mA (12~30 VDC)
1~5 V, 0~5 V (12~30 VDC)
Accuracy: ±0.5% F.S. (typ.)
Temperature Drift: ±1.5% F.S. (-10℃ ~ 70℃)
Operating Temperature: -40℃ ~ 125℃
Housing Material: Stainless Steel 304
Sensing Element Material: Stainless Steel 316L
Electrical Connection: Direct Lead Wires
Protection Rating: IP65
Explosi
