Product
Product Detail

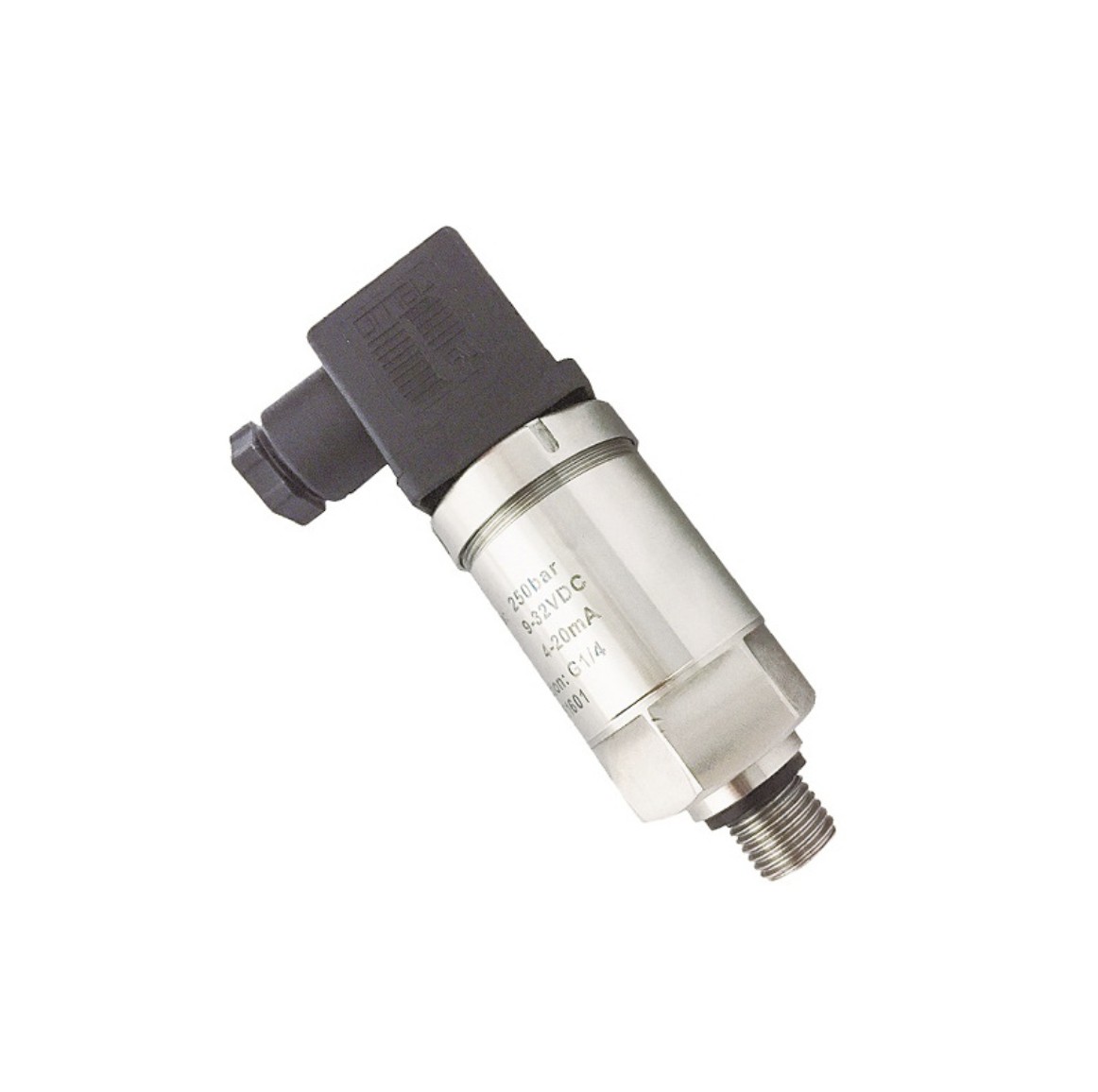

Pressure Transmitter OTD308

Name: Pressure Transmitter OTD308
Rating: 4.6 (88 reviews)

Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Measuring Range: -100 kPa…0~100 kPa…60 MPa
Output Signal: 4~20 mA (24 VDC),
0.5~4.5 V R/M,
0~10 V (24 VDC)
Accuracy: 0.5% F.S.
Operating Temperature: -40℃ ~ 125℃
Temperature Drift: ±1.5% F.S. (@ -20℃ ~ 85℃)
Housing Material: Stainless Steel 316L
Sensing Element Material: Stainless Steel 316L
Protection Rating: IP65

Select the number of specifications

Please check the product information you want!

Product Detail

Product overview

OTD308 is a pressure transmitter specially designed for hydraulic industry, whose pressure sensitive core is diffused silicon sensor. The internal application-specific integrated circuit converts the mV signal of the sensor into the standard current signal, which can directly connect with the computer interface card, control instrument, intelligent instrument or PLC etc. If it is used for remote transmission, current output is available. It has small size, light weight and all stainless steel seal structure, which can be used in corrosive environment. The product is easy to install and has high anti-vibration and shock resistance performance, which can be widely used in process control, aviation, aerospace, auto industry, medical equipment, HVAC and other fields.

No comment

Previous : Isolation Explosion-proof Pressure Sensor OTD301 Next : Non-cavity Flush Pressure Transmitter sensor OTD340
