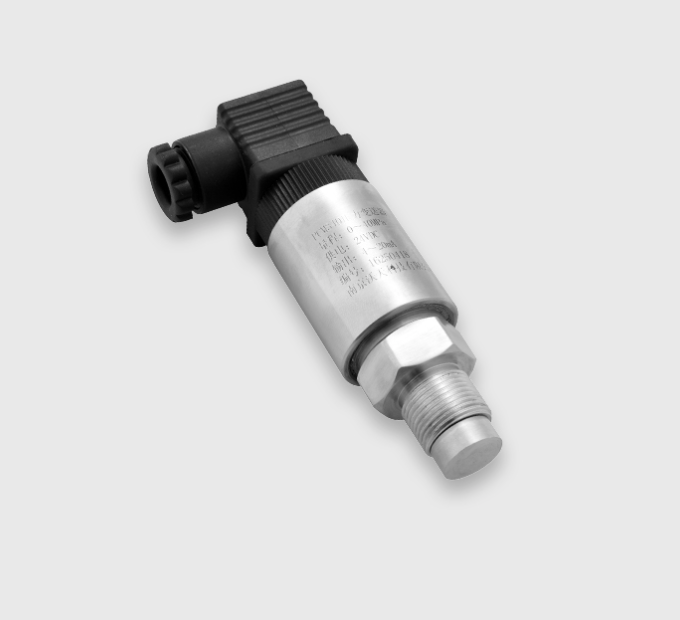

Non-cavity Flush Pressure Transmitter sensor OTD340
Non-cavity Flush Pressure Transmitter sensor OTD340
Non-cavity Flush Pressure Transmitter sensor OTD340

Non-cavity Flush Pressure Transmitter sensor OTD340

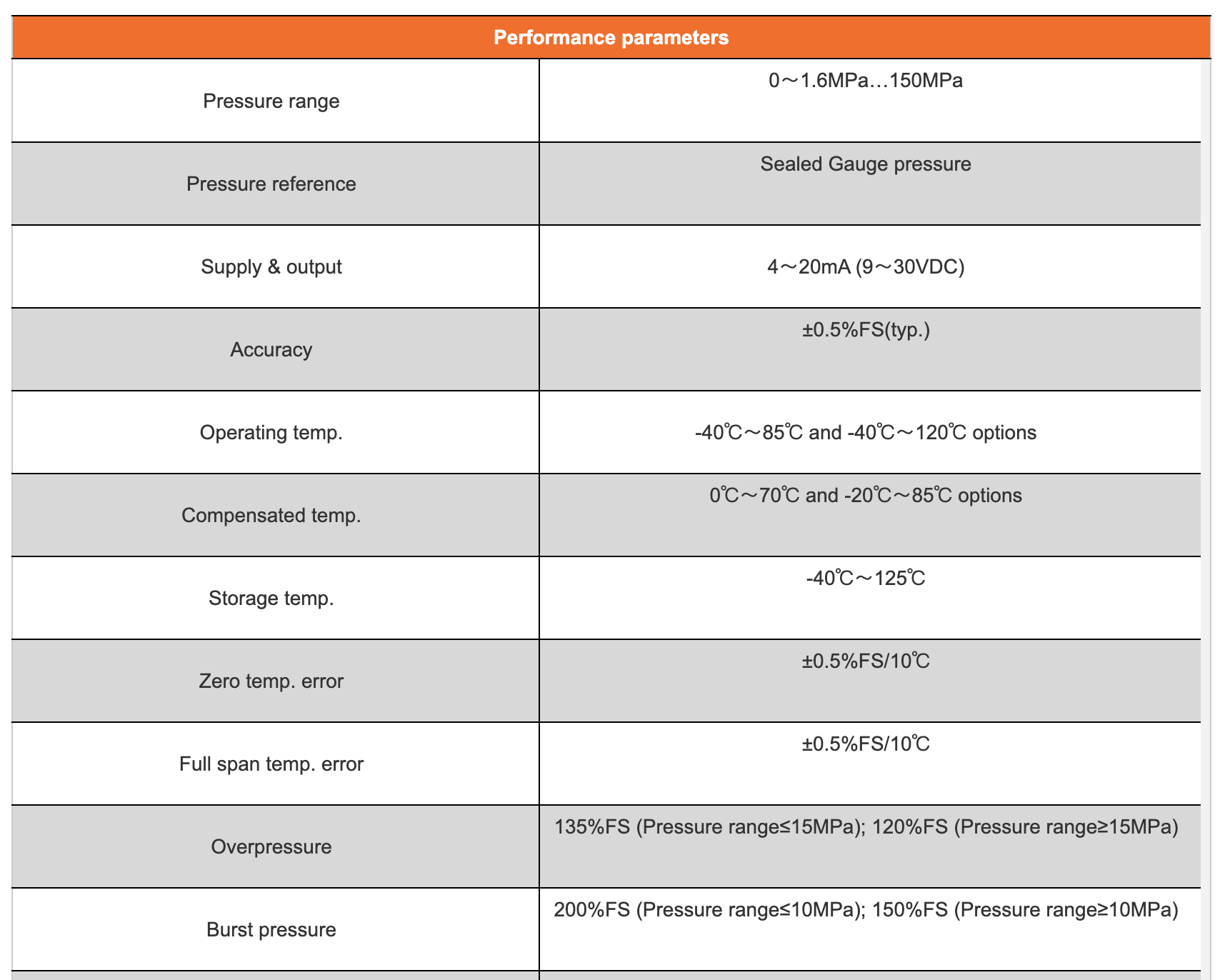

Pressure Type: Gauge Pressure
Range: 0~2MPa…150MPa
Power Supply & Output: 4~20mA
Accuracy: 0.5% FS (Typical)
Operating Temperature: -40℃ ~ 85℃
Temperature Drift: 1.5% FS (-20℃ ~ 85℃)
Media Compatibility: 17-4PH Stainless Steel
Protection Rating: IP65

Non-cavity Flush Pressure Transmitter sensor OTD340

Select the number of specifications

Please check the product information you want!

Product Detail

OTD340 Flush Pressure Transmitter adopts the high-precision foil type strain gauge, and non-cavity measuring diaphragm, particularly suitable for measuring fluids with high viscosity. This product adopts the improved and optimized installation structure, which makes the product have the good anti-vibration capacity. It is equipped with a variety of characteristic amplifying circuits, such as anti-interference, high-temperature resistant type, intrinsically safe explosion-proof type etc., which makes the modified product suitable for oil field, food and many other measurement control situations.



No comment

Previous : Pressure Transmitter OTD308 Next : Submersible Level Transmitter OTD260H
Product Detail

OTD340 Flush Pressure Transmitter adopts the high-precision foil type strain gauge, and non-cavity measuring diaphragm, particularly suitable for measuring fluids with high viscosity. This product adopts the improved and optimized installation structure, which makes the product have the good anti-vibration capacity. It is equipped with a variety of characteristic amplifying circuits, such as anti-interference, high-temperature resistant type, intrinsically safe explosion-proof type etc., which makes the modified product suitable for oil field, food and many other measurement control situations.



Non-cavity Flush Pressure Transmitter sensor OTD340
Pressure Type: Gauge Pressure
Range: 0~2MPa…150MPa
Power Supply & Output: 4~20mA
Accuracy: 0.5% FS (Typical)
Operating Temperature: -40℃ ~ 85℃
Temperature Drift: 1.5% FS (-20℃ ~ 85℃)
Media Compatibility: 17-4PH Stainless Steel
Protection Rating: IP65
