Product
Product Detail

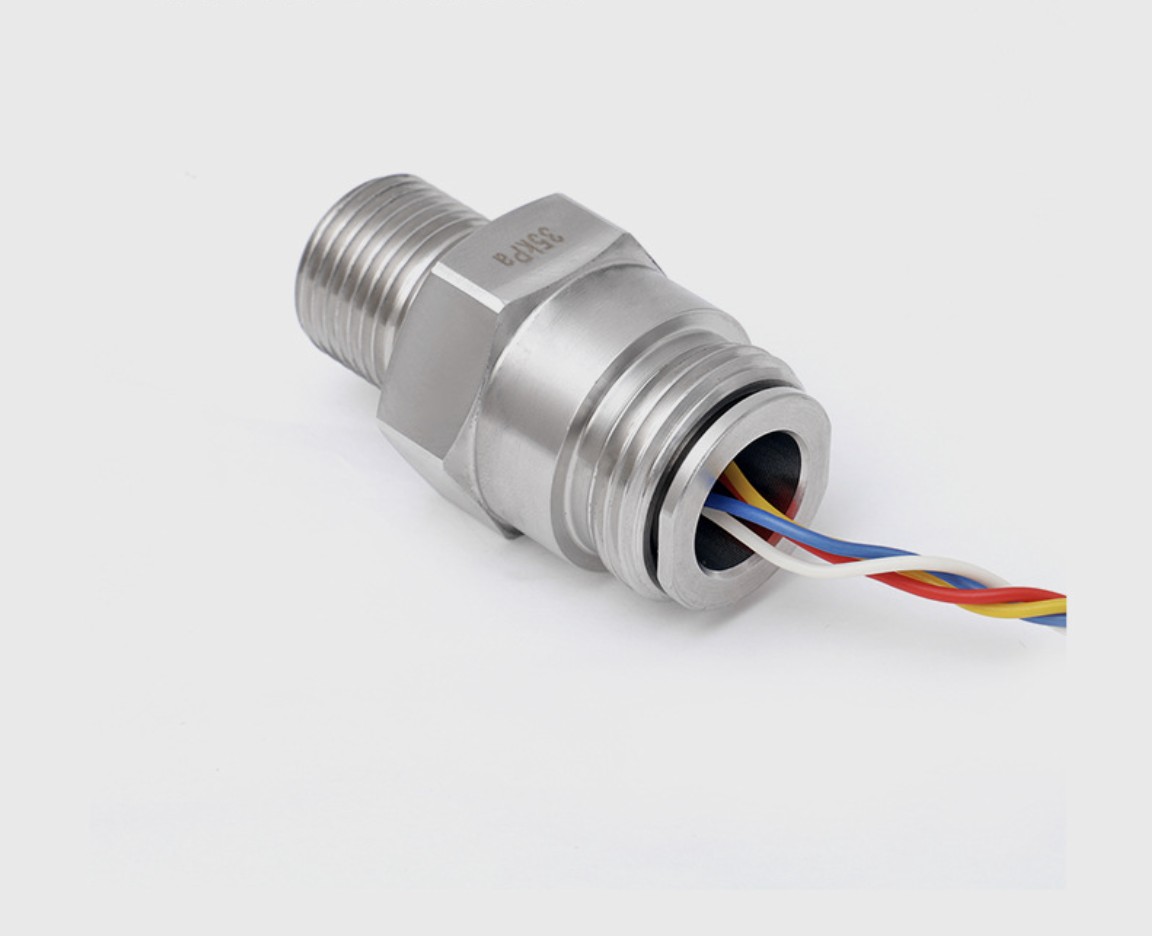

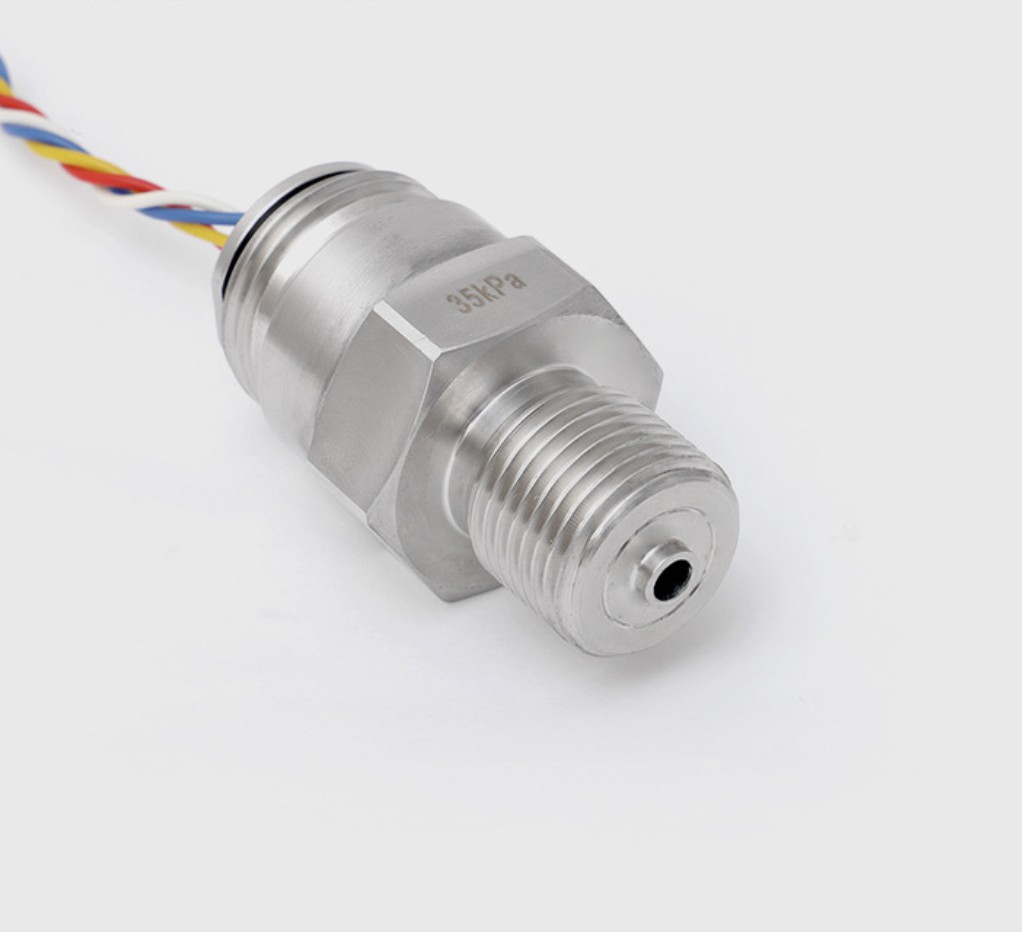

Pressure sensor OTD11

Name: Pressure sensor OTD11
Rating: 4.8 (92 reviews)

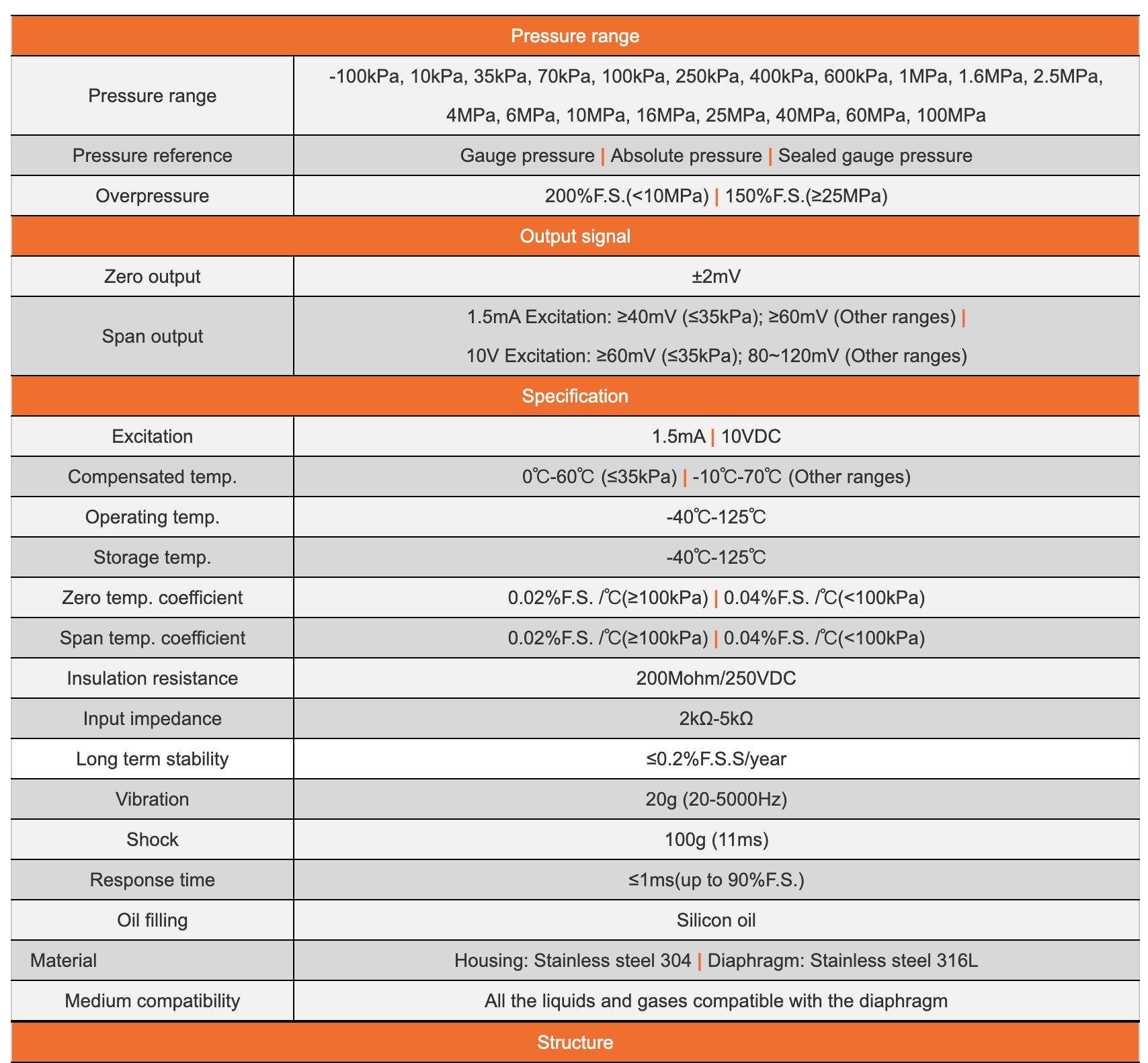

Gauge, Absolute, Sealed Pressure sensor OTD11 0~10kPa…100MPa
Pressure Type: Gauge, Absolute, Sealed
Range: -100kPa…0~10kPa…100MPa
Excitation: Constant Current 1.5mA, Constant Voltage 10V
Input Impedance: 2kΩ~5kΩ (Constant Current)
3kΩ~18kΩ (Constant Voltage)
Zero Output: ±2mV
Full-Range Output:
≥ 30mV (10kPa, Constant Current 1.5mA)
≥ 60mV (Other Ranges, Constant Current 1.5mA)
50mV±2mV (10kPa, Constant Voltage 10V)
100mV±2mV (Other Ranges, Constant Voltage 10V)
Nonlinearity: ±0.25%

Select the number of specifications

Please check the product information you want!

Product Detail

l Full welded seal, can be used in harsh environment

l High performance, all solid, corrosion resistant

l High accuracy and stability

l Strong anti-interference, good long-term stability

l Constant current excitation option

l Customization available

No comment

Previous : Adjustable High Pressure Switches Next : Monocrystalline Silicon Pressure Sensor OTD91

Product Detail

l Full welded seal, can be used in harsh environment

l High performance, all solid, corrosion resistant

l High accuracy and stability

l Strong anti-interference, good long-term stability

l Constant current excitation option

l Customization available
