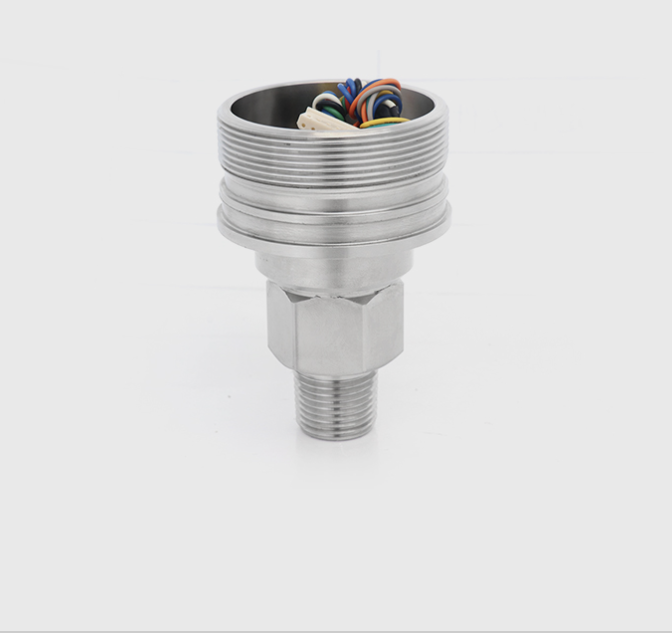

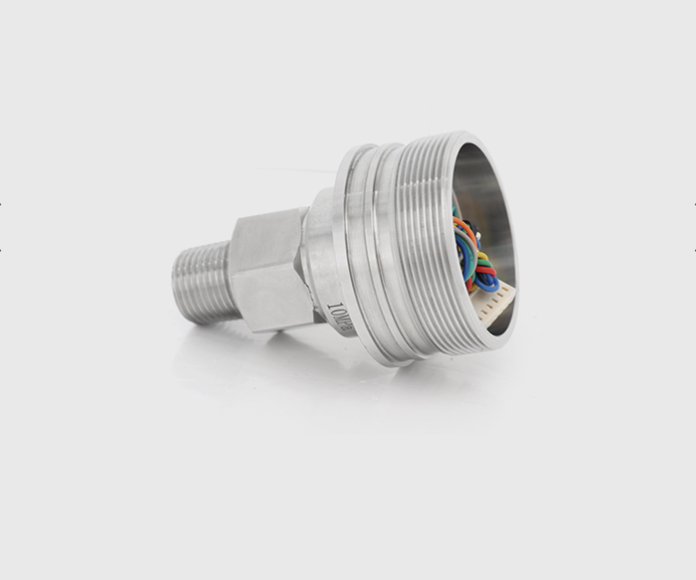

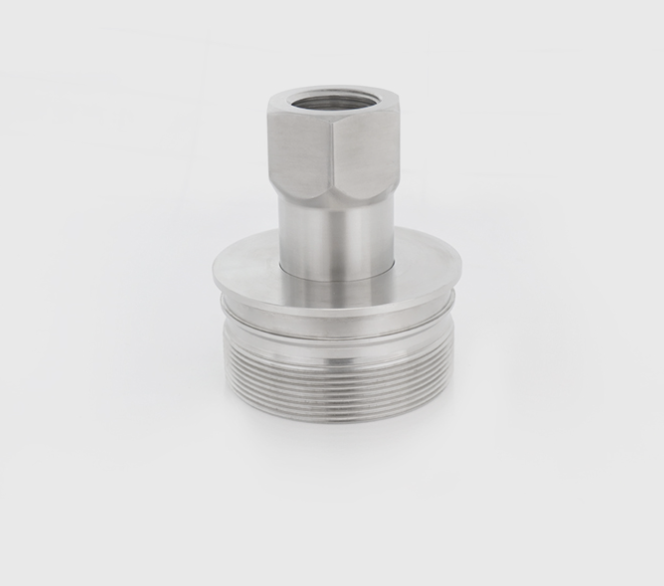

Monocrystalline Silicon Pressure Sensor OTD91
Monocrystalline Silicon Pressure Sensor OTD91
Monocrystalline Silicon Pressure Sensor OTD91

Monocrystalline Silicon Pressure Sensor OTD91

Monocrystalline Silicon Pressure Sensor , Absolute pressure sensor ，
Pressure Type: Gauge, Absolute
Excitation: 5V Constant Voltage
Range: 6kPa, 35kPa, 100kPa, 250kPa, 1MPa, 3MPa, 10MPa, 20MPa, 40MPa
Operating Temperature: -40 to 85℃
Pressure Port Material: 316L
Diaphragm Material: 316L Hastelloy C
Filling Fluid: Silicone Oil
Nonlinearity: ±0.1% FS (Range ≥ 10kPa), ±0.5% FS (Range < 10kPa)
Full-Range Output: 200mV to 300mV (10MPa Range), 60mV to 140mV (Other Ranges)

Monocrystalline Silicon Pressure Sensor OTD91

Select the number of specifications

Please check the product information you want!

Product Detail

OTD 91 Monocrystalline Silicon Pressure Sensor adopts the imported MEMS monocrystalline silicon pressure die, achieves international leading overpressure performance and ensures the excellent stability of signal. It is assembled in all-welded seal structure and filled with silicon oil in high vacuum. Measuring diaphragm of different materials isolates measured medium and pressure die, meanwhile, the sensor performs long-term reliable measurement of differential pressure signals of various strong corrosive medium.




No comment

Previous : Pressure sensor OTD11 Next : Differential Pressure Sensor OTD10D
Product Detail

OTD 91 Monocrystalline Silicon Pressure Sensor adopts the imported MEMS monocrystalline silicon pressure die, achieves international leading overpressure performance and ensures the excellent stability of signal. It is assembled in all-welded seal structure and filled with silicon oil in high vacuum. Measuring diaphragm of different materials isolates measured medium and pressure die, meanwhile, the sensor performs long-term reliable measurement of differential pressure signals of various strong corrosive medium.




Monocrystalline Silicon Pressure Sensor OTD91
Monocrystalline Silicon Pressure Sensor , Absolute pressure sensor ，
Pressure Type: Gauge, Absolute
Excitation: 5V Constant Voltage
Range: 6kPa, 35kPa, 100kPa, 250kPa, 1MPa, 3MPa, 10MPa, 20MPa, 40MPa
Operating Temperature: -40 to 85℃
Pressure Port Material: 316L
Diaphragm Material: 316L Hastelloy C
Filling Fluid: Silicone Oil
Nonlinearity: ±0.1% FS (Range ≥ 10kPa), ±0.5% FS (Range < 10kPa)
Full-Range Output: 200mV to 300mV (10MPa Range), 60mV to 140mV (Other Ranges)
